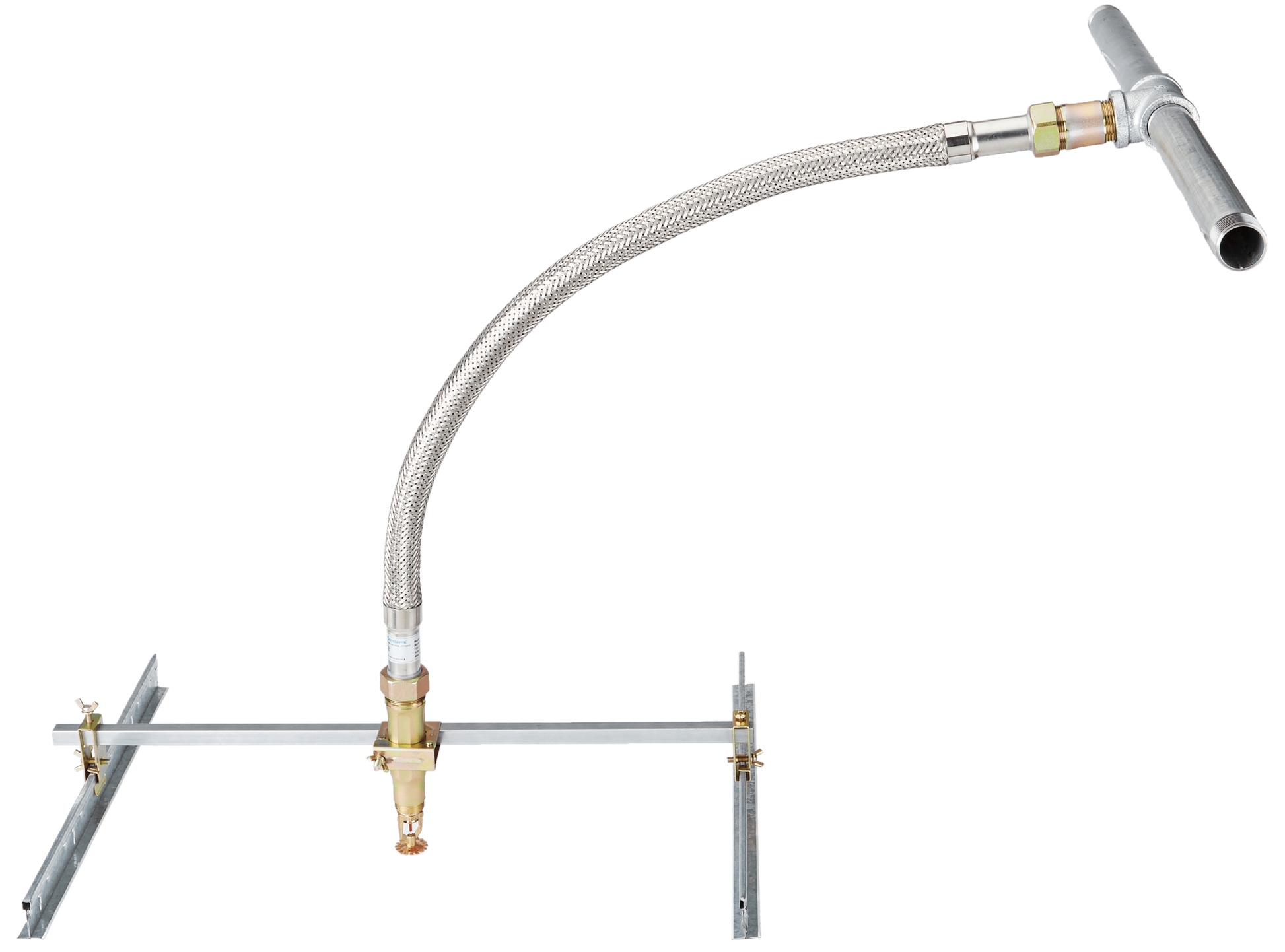

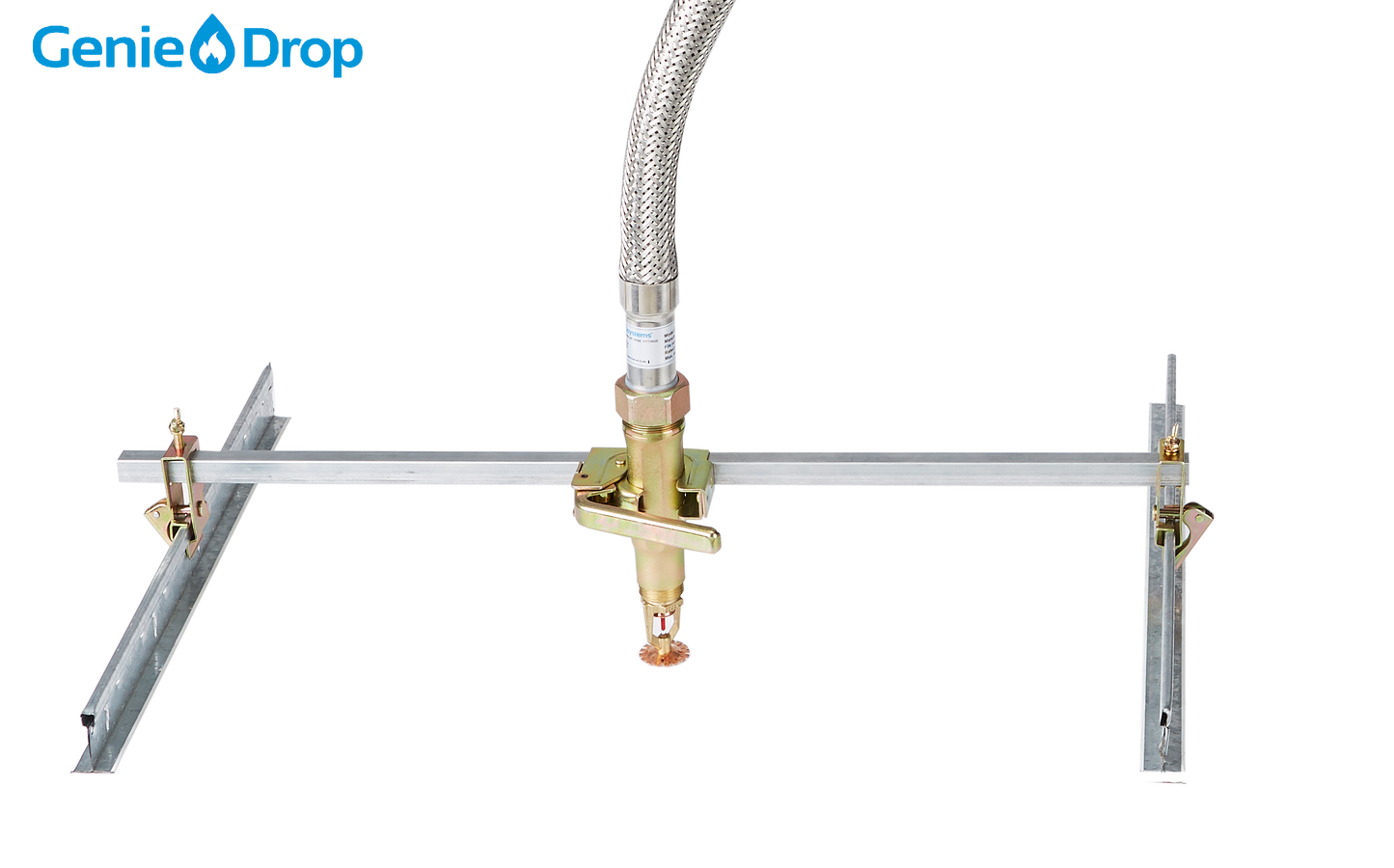

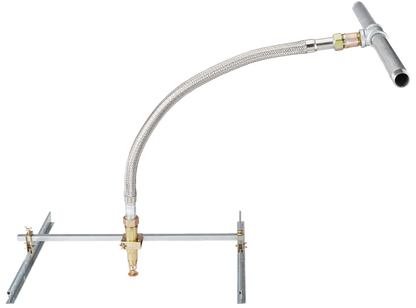

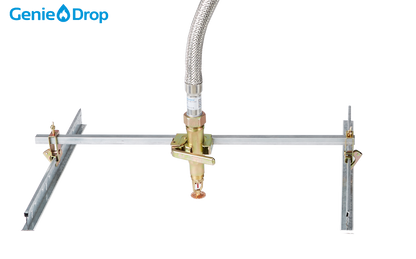

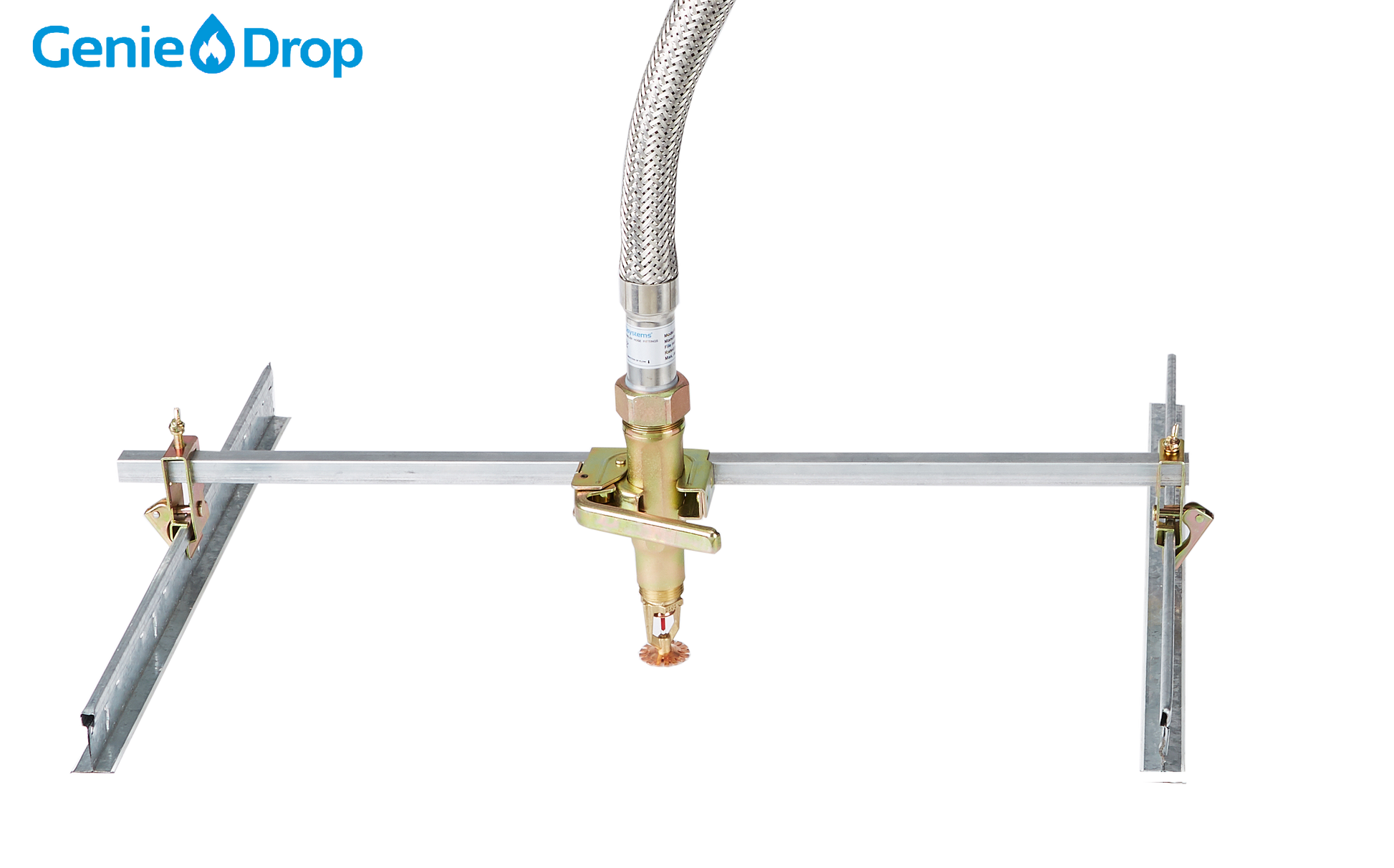

Engineered for demanding fire sprinkler installations, the Genie DJ28B Braided Flexible Hose Kit offers superior strength, vibration resistance, and seismic durability. Built with stainless steel braiding and high-grade fittings, this UL/FM approved system is the gold standard for efficient and secure branch line connections.

Key Features:

• Narrow Pitch Braiding – Optimized for flexibility and kink resistance
• High Pressure Rating – Withstands up to 200 psi (1380 kPa)
• Heat Resilient – Max ambient temperature of 107°C
• Corrosion Resistant – Stainless steel hose with premium fittings
• Fast Installation – Preassembled system with tool-free mounting brackets

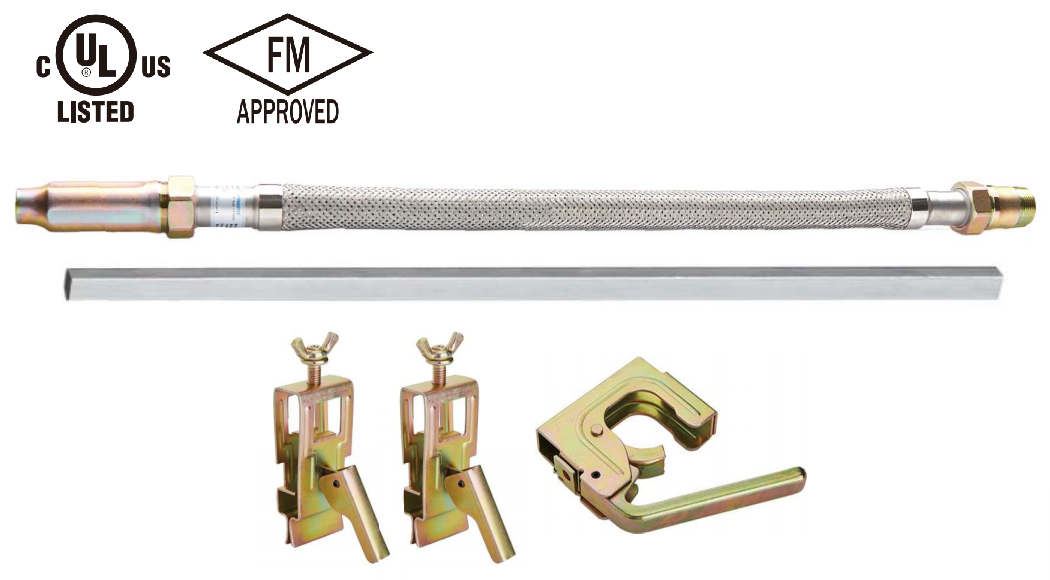

Kit Includes:

• 1 × Braided Flexible Hose 1800mm

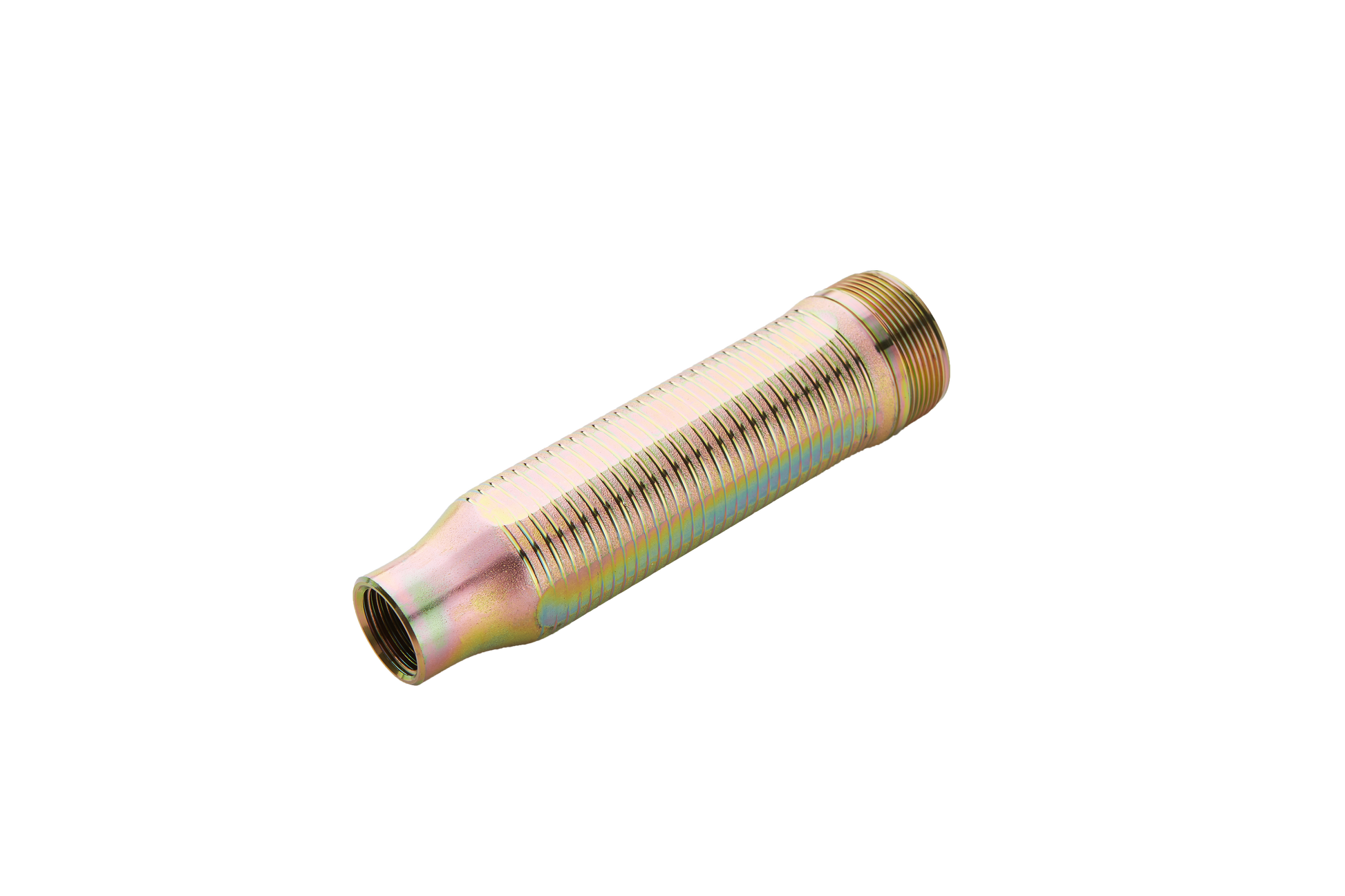

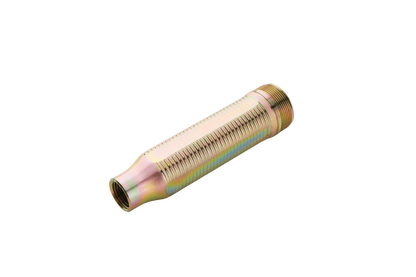

• 1 × Knurling Reducer
• 1 × Nipple
• 1 × Slip Nut
• 1 × Isolation Ring
• 1 × Gasket

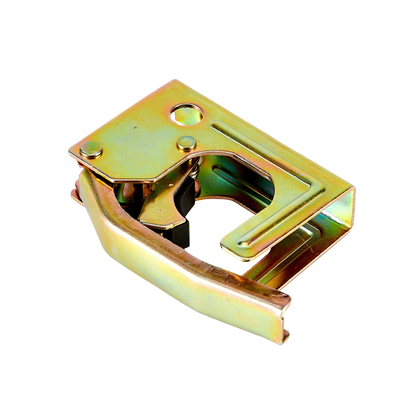

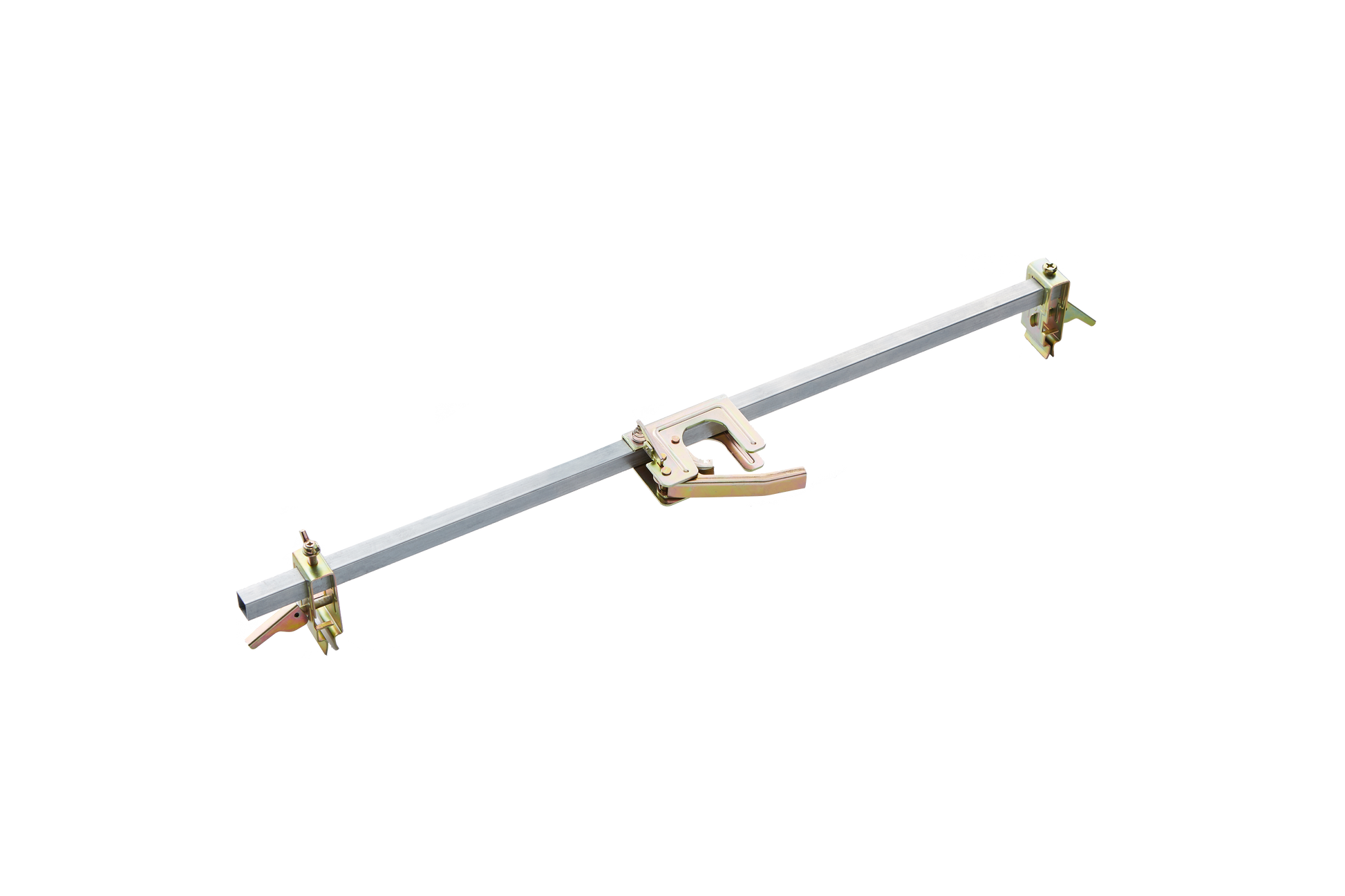

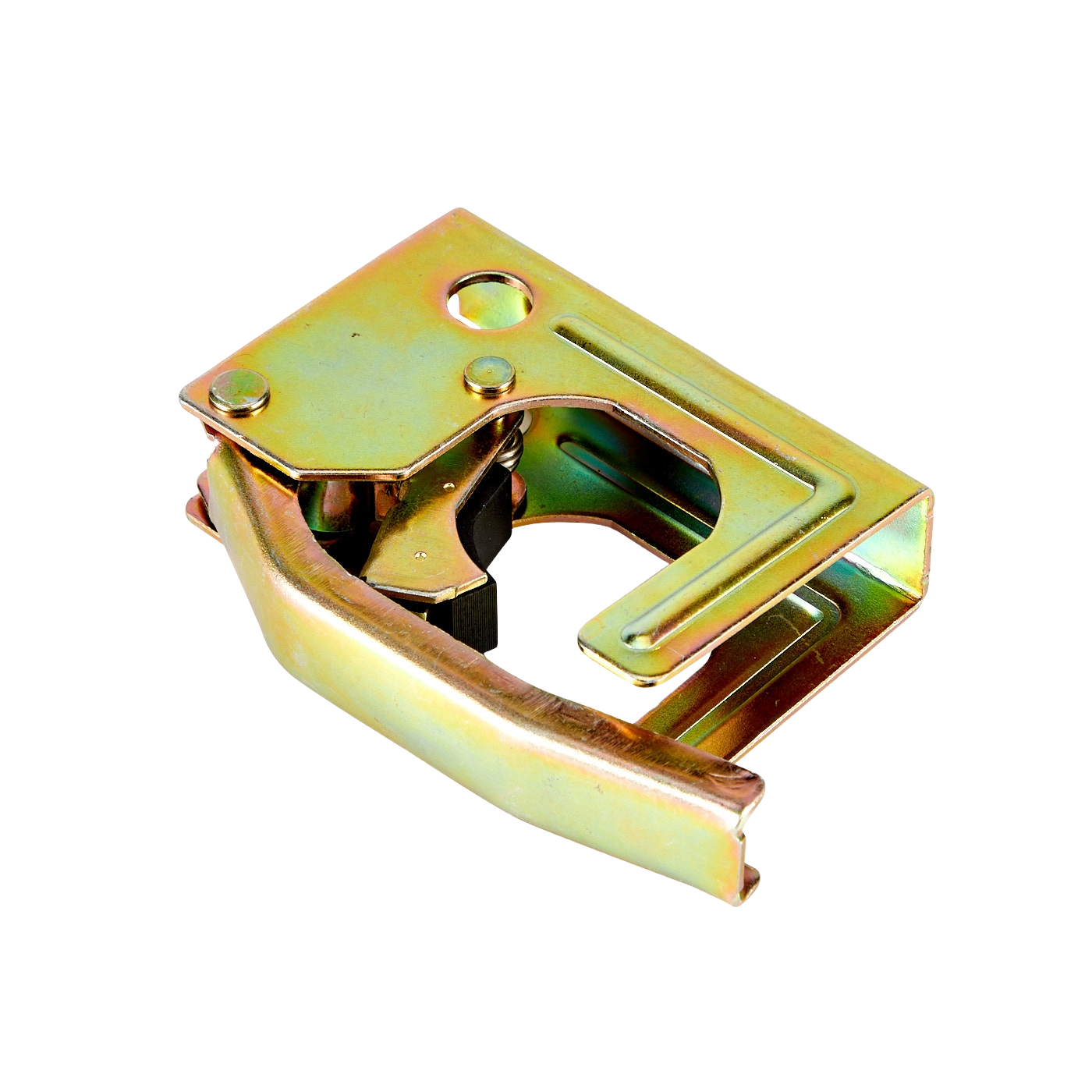

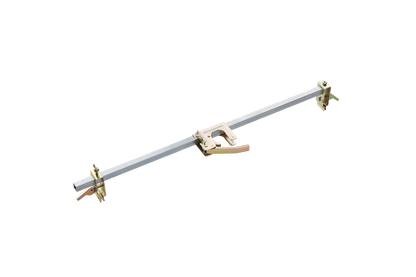

• 1 × Center Bracket

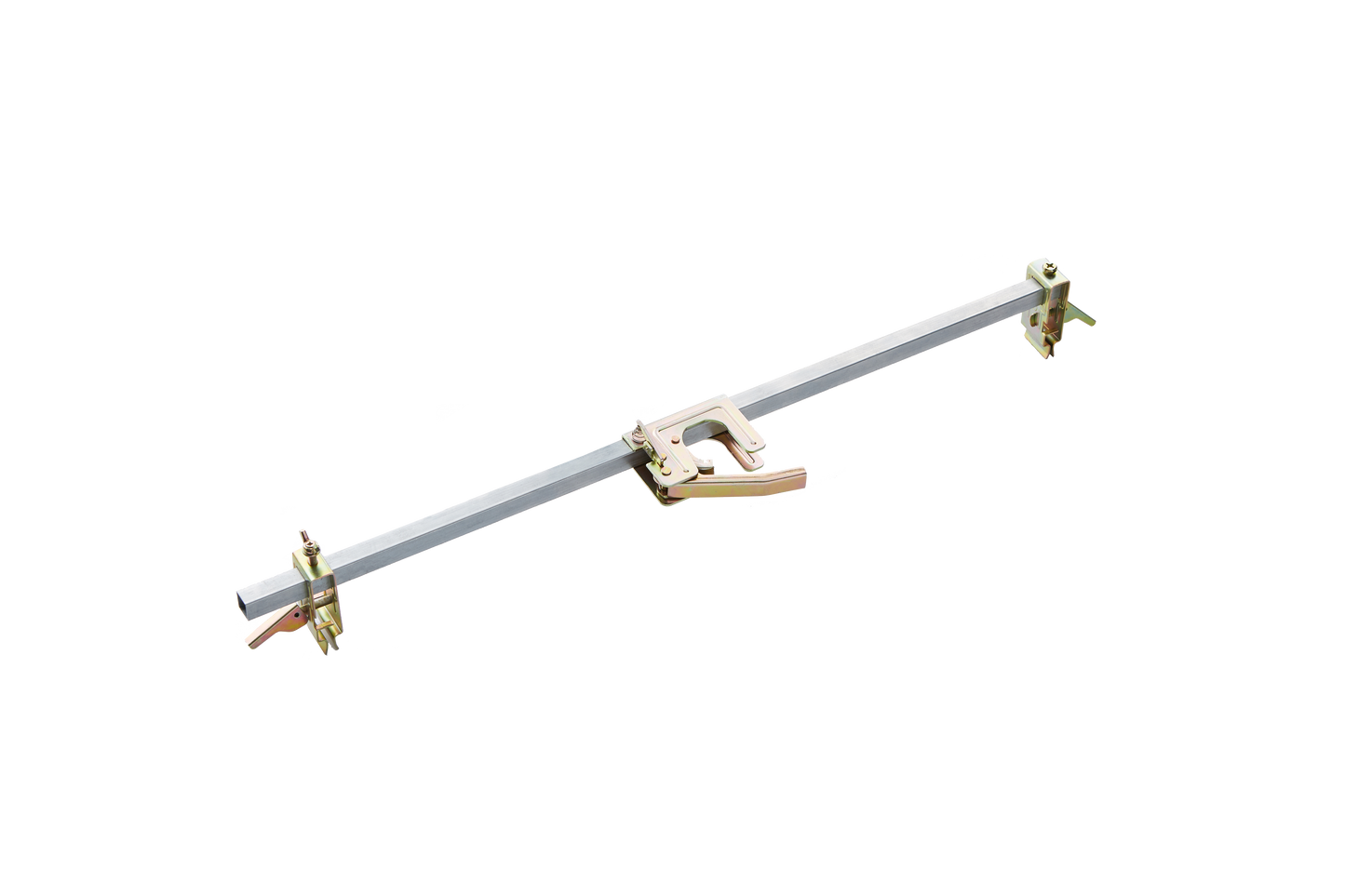

• 1 × Square Bar 1300mm

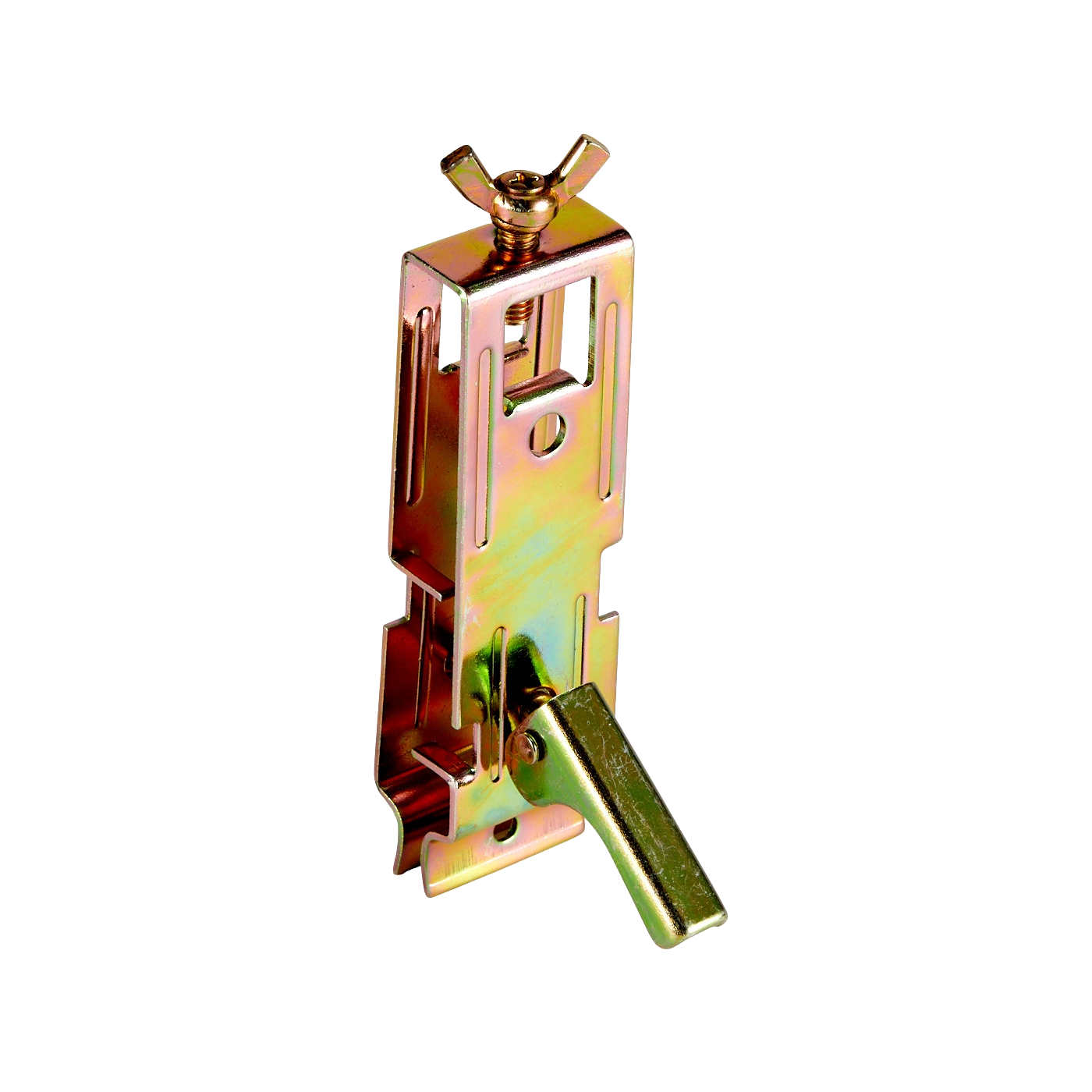

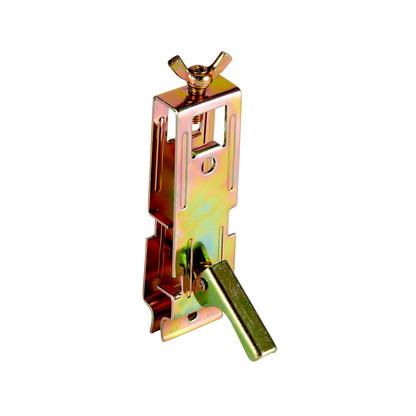

• 2 × End Brackets

Applications: Commercial and industrial ceiling installations (T-bar, metal, concrete, wood beam, etc.)

Certifications:

• UL Listed
• FM Approved
• NFPA 13 / 13D / 13R Compliant

Specifications

• Hose Diameter: OD 28.0mm / ID 27.4mm
• Max Temp: 107°C
• Max Pressure: 200 psi / 1380 kPa
• Min Bend Radius: 76.2mm (UL) / 230mm (FM)
• Construction: SS 304 Hose, Zinc-Plated Steel Fittings
• Bracket Material: Galvanized / Zinc-Coated Steel
